| Название изделия | Номинальное напряжение (В) | Отключающая способность Icu, Icn (кА) |
Характеристика диапазона отключения | Номинальная сила тока (А) | Кол-во полюсов | Аксессуары | Стандарт изделия | Кол-во модулей (Кратное 9 мм) |
| NDB2-63 | 230..415 AC 80 DC (1P, 2P) |
10 | B, C, D | 1, 2, 3, 4, 5, 6, 8, 10, 12, 13, 16, 20, 25, 32, 40, 50, 63 | 1P 2P 3P 4P |

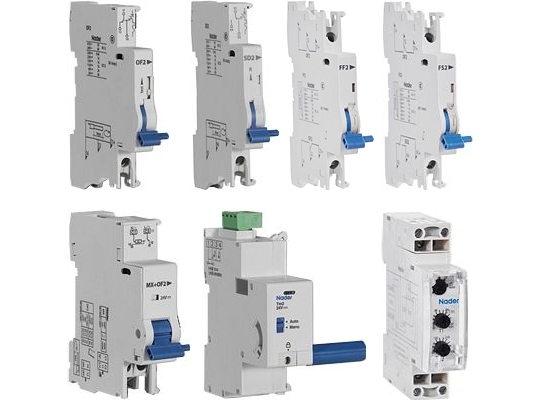

OF2, SD2, MX+OF2, Tm2, Tm2GQ, NGQ2(A), |
IEC60898-1 GB/T10963.1 GB/T10963.2 |
2, 4, 6, 8 |
| NDB2-63Н | 230..400 AC | 15 | C, D | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 | IEC60947-2 GB/T14048.2 | |||

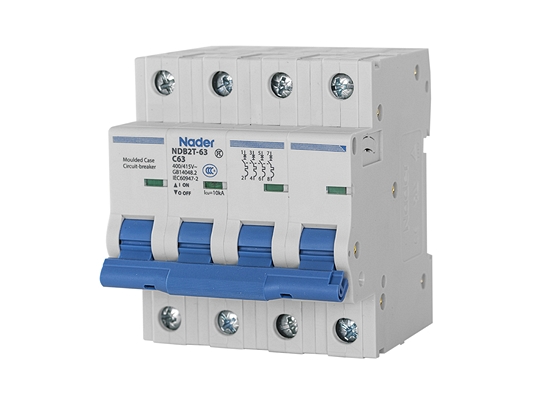

| NDB2T-63 | 230..415 AC 60..125 DC |
10 | B, C, D | 1, 1.2, 1.5, 1.6, 2, 3,4, 5, 6, 7, 8, 10, 12,13, 15, 16, 20, 25, 30, 32, 35, 40, 50, 60, 63 | ||||

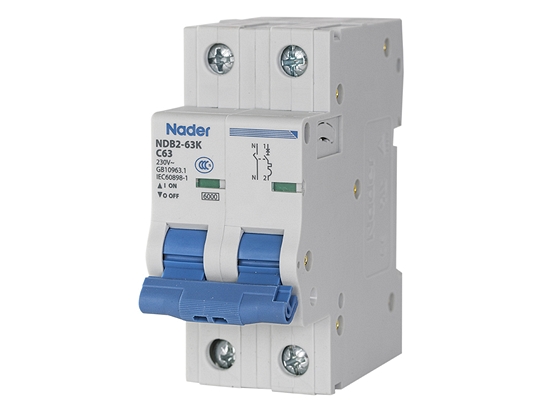

| NDB2-63K | 230 AC | 6 | C | 1, 2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 | 1P+N | OF2, SD2,MX+OF2, Tm2 | IEC60898-1 GB/T10963.1 | 4 |

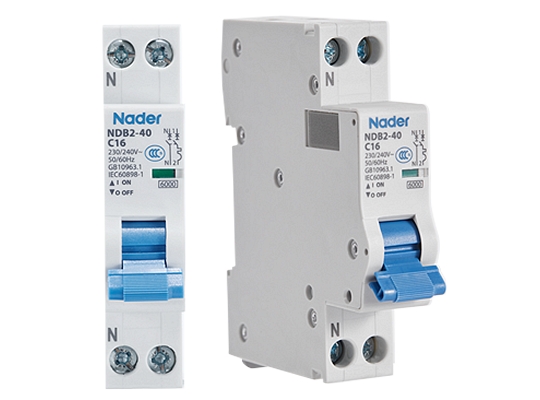

| NDB2-40 | 230..240 AC | B, C, D | 2, 4, 6, 10, 16, 20, 25, 32, 40 | OF2, SD2, MX+OF2 |
2 | |||

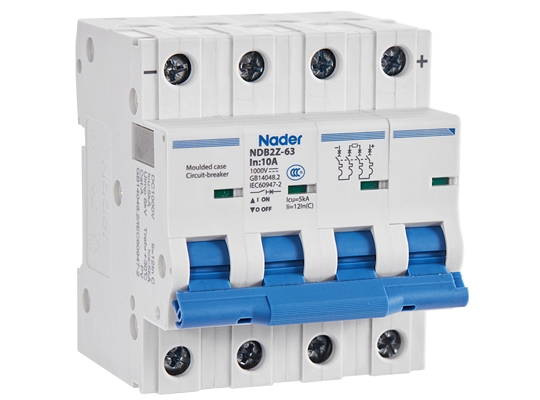

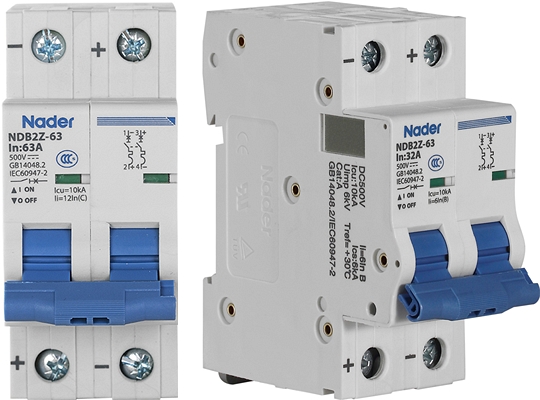

| NDB2Z-63 | 125..1000 DC | 10: 125..500 DC 5: 50..1000DC | B, C | 1, 1.2, 1.5, 1.6, 2, 3,4, 5, 6, 7, 8, 10, 12,13, 15, 16, 20, 25, 30, 32, 40, 50, 60, 63 |
1Р, 2Р, 3Р, 4Р | OF2,SD2, MX+OF2,Tm2, JS1-11Y/B2-63 Механическая блокировка |
IEC60947-2 GB/T14048.2 | 2, 4, 6, 8 |
| NDB2Z-63H | 250 DC | 20 | B, C | 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 | 2Р | 2 | ||

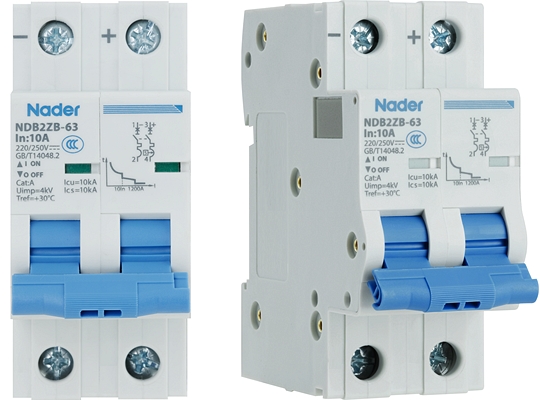

| NDB2ZB-63 | 10 |
Трехступенчатая:
|
10, 16, 20, 25, 32, 40 | OF2, SD2, FS2, NGQ2(A), MX+OF2 |
GB/T14048.2 | 2 | ||
| NDB2ZB-63H | 20 | |||||||
| NDB2N | 230..415 AC 80 DC |
6 AC 10 DC |
AC: B, C, D DC: B, C |
1, 2, 3, 4, 5, 6, 8,10, 12, 13, 16, 20,25, 32, 40, 50, 63 | 1P,1P+N,2P, 3P,3P+N,4P |
OF2,SD2, MX+OF2,Tm2, Tm2GQ, JS1-11Y/B2-63 Механическая блокировка |
GB/T10963.1 GB/T10963.2 IEC60898-1 IEC60898-2 | 2, 4, 6, 8 |
In=1..63 A
Un=230...415V AC, 80V DC
Icu=10 кА
Хар-ка сраб.: B / C / D
Кол-во полюсов: 1..4
Un=AC230, 240, 400, 415 (1P) AC400, 415 (2P, 3P, 4P) DC80(1P, 2P)
